产品介绍

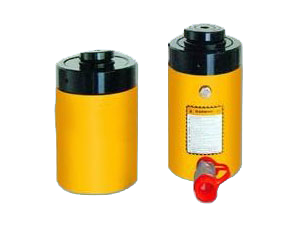

单作用自锁式液压千斤顶JKRH系列
1、单作用，负载回缩
2、螺母自锁使负载更安全
3、可经受的偏载荷达液压缸额承载能力的5%
4、溢流孔兼有限制行程的功能
5、可替换的硬质沟槽鞍座为标准配置
6、所有型号带快速接头与防尘帽
|
型号 |
液压缸 |
行程 |
液压缸 |
液压 |
本体高度 A |
伸展高度 B |
外径 D |
油缸 |
重量 |
|
(Ton) |
mm |
cm 2 |
cm 3 |
(mm) |
(mm) |
(mm) |
(mm) |
(Kg) |
|
|
JKR02H-502 |
50 |
50 |
70.9 |
355 |
164 |
214 |
125 |
95 |
15 |
|
JKR02H-504 |
100 |
70.9 |
709 |
214 |
314 |
125 |
95 |
20 |
|
|
JKR02H-506 |
150 |
70.9 |
1064 |
264 |
141 |
125 |
95 |
25 |
|
|
JKR02H-508 |
200 |
70.9 |
1418 |
314 |
514 |
125 |
95 |
30 |
|
|
JKR02H-5010 |
250 |
70.9 |
1773 |
364 |
614 |
125 |
95 |
35 |
|
|
JKR02H-5012 |
300 |
70.9 |
2127 |
414 |
714 |
125 |
95 |
40 |
|
|
JKR02H-1002 |
100 |
50 |
132.7 |
664 |
187 |
237 |
165 |
130 |
30 |
|
JKR02H-1004 |
100 |
132.7 |
1327 |
237 |
337 |
165 |
130 |
39 |
|
|
JKR02H-1006 |
150 |
132.7 |
1991 |
287 |
437 |
165 |
130 |
48 |
|
|
JKR02H-1008 |
200 |
132.7 |
2654 |
337 |
537 |
165 |
130 |
56 |
|
|
JKR02H-10010 |
250 |
132.7 |
3318 |
387 |
637 |
165 |
130 |
64 |
|
|
JKR02H-10012 |
300 |
132.7 |
3981 |
437 |
737 |
165 |
130 |
73 |
|
|
JKR02H-1502 |
150 |
50 |
198.6 |
993 |
209 |
259 |
205 |
159 |
53 |
|
JKR02H-1504 |
100 |
198.6 |
1986 |
259 |
359 |
205 |
159 |
66 |
|
|
JKR02H-1506 |
150 |
198.6 |
2979 |
309 |
459 |
205 |
159 |
78 |
|
|
JKR02H-1508 |
200 |
198.6 |
3972 |
359 |
559 |
205 |
159 |
92 |
|
|
JKR02H-15010 |
250 |
198.6 |
4965 |
409 |
659 |
205 |
159 |
104 |
|
|
JKR02H-15012 |
300 |
198.6 |
5958 |
459 |
759 |
205 |
159 |
117 |
|
|
JKR02H-2002 |
200 |
50 |
265.6 |
1330 |
243 |
293 |
235 |
184 |
83 |
|
JKR02H-2006 |
150 |
265.6 |
3989 |
343 |
493 |
235 |
184 |
117 |
|
|
JKR02H-20010 |
300 |
265.6 |
7995 |
493 |
793 |
235 |
184 |
170 |
|
|
JKR02H-2502 |
250 |
50 |
366.1 |
1832 |
249 |
299 |
275 |
216 |
116 |
|
JKR02H-2506 |
150 |
366.1 |
5496 |
349 |
499 |
275 |
216 |
162 |
|
|
JKR02H-25010 |
300 |
366.1 |
10995 |
499 |
799 |
275 |
216 |
234 |
|
|
JKR02H-3002 |
300 |
50 |
456.2 |
2281 |
295 |
345 |
310 |
241 |
173 |
|
JKR02H-3006 |
150 |
456.2 |
6843 |
395 |
545 |
310 |
241 |
233 |
|
|
JKR02H-30010 |
300 |
456.2 |
13740 |
545 |
845 |
310 |
241 |
323 |
|
|
JKR02H-4002 |
400 |
50 |
559.9 |
2800 |
335 |
385 |
350 |
267 |
250 |
|
JKR02H-4006 |
150 |
559.9 |
8399 |
435 |
585 |
350 |
267 |
327 |
|
|
JKR02H-40010 |
300 |
559.9 |
16800 |
585 |
885 |
350 |
267 |
441 |
|
|
JKR02H-5002 |
500 |
50 |
731.1 |
3653 |
375 |
425 |
400 |
305 |
367 |
|
JKR02H-5006 |
150 |
731.1 |
10959 |
475 |
625 |
400 |
305 |
466 |
|
|
JKR02H-50010 |
300 |
731.1 |
21930 |
625 |
925 |
400 |
305 |
617 |
|
|
JKR02H-6002 |
600 |
50 |
854.8 |
4277 |
395 |
445 |
430 |
330 |
446 |
|
JKR02H-6006 |
150 |
854.8 |
12830 |
495 |
645 |
430 |
330 |
562 |
|
|
JKR02H-60010 |
300 |
854.8 |
25650 |
645 |
945 |
430 |
330 |
737 |
|
|
JKR02H-8002 |
800 |
50 |
1177 |
5882 |
455 |
505 |
505 |
387 |
709 |
|
JKR02H-8006 |
150 |
1177 |
17645 |
555 |
705 |
505 |
387 |
870 |
|
|
JKR02H-80010 |
300 |
1177 |
35370 |
705 |
1005 |
505 |
387 |
1110 |
|
|
JKR02H-10002 |
1000 |
50 |
1466 |
7329 |
495 |
545 |
560 |
432 |
949 |
|
JKR02H-10006 |
150 |
1466 |
21986 |
595 |
745 |
560 |
432 |
1141 |
|
|
JKR02H-100010 |
300 |
1466 |
43980 |
745 |
1045 |
560 |
432 |
4130 |
